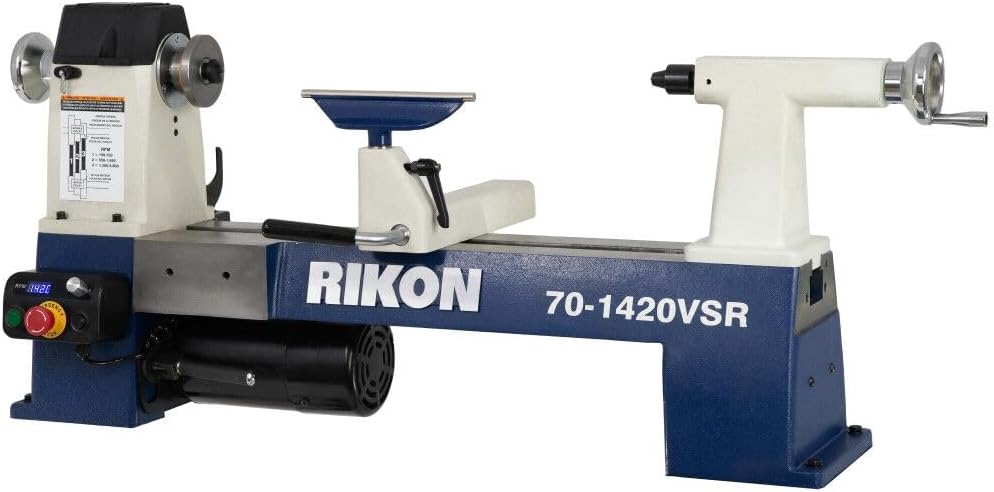

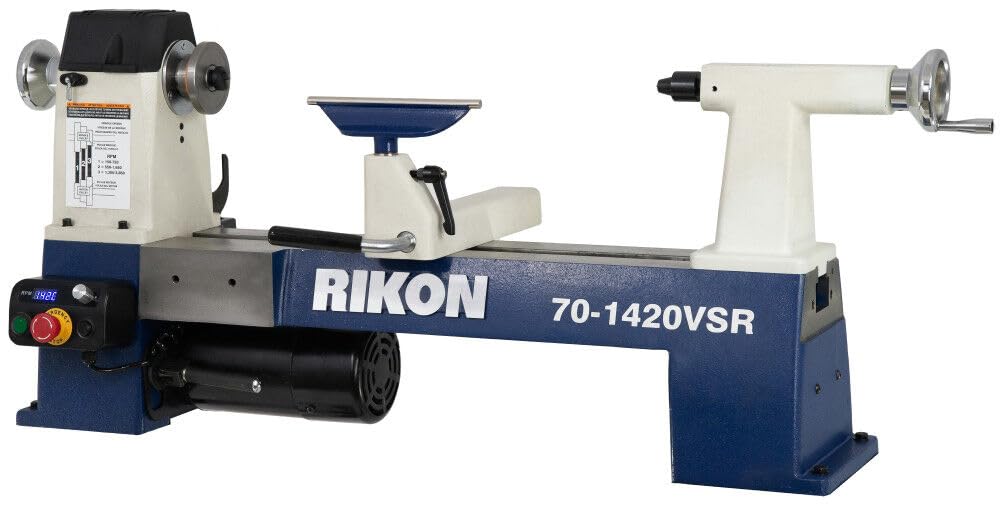

RIKON 70-1420VSR MIDI Lathe with 1.5 HP DC Motor 14" x 20" VSR Lathe

Features:

• 14 x 20 In. variable speed
• 115V, 1.5 HP, 150-3850 RPM
• Machined edges for optional extensions
• Heavy duty cast iron
• Swing over bed: 14"
• Swing over tool rest: 10-5/8"
• Working distance between centers: 20"
• Tool rest post diameter:1"
• 14x20 VSR Lathe

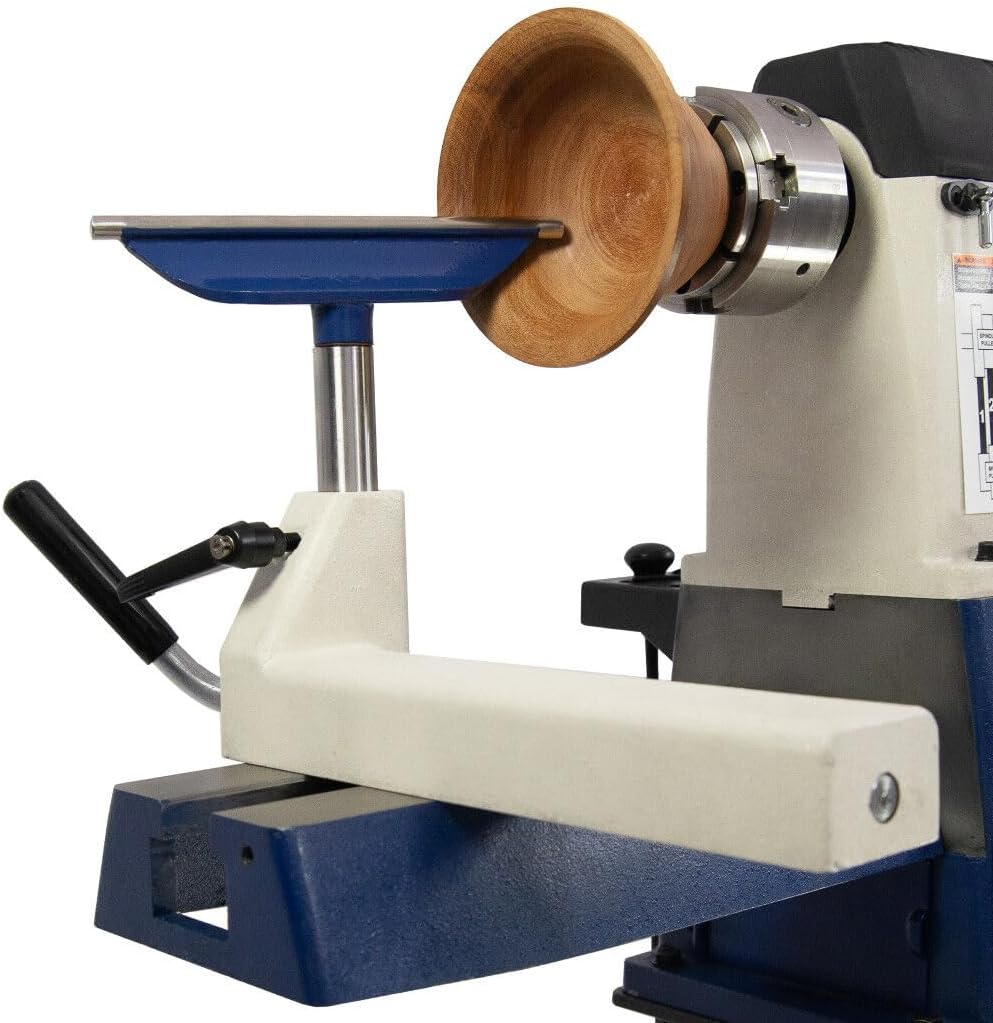

• 8 In. Pro tool rest features hardened steel top rod to provide extra control of tools when turning

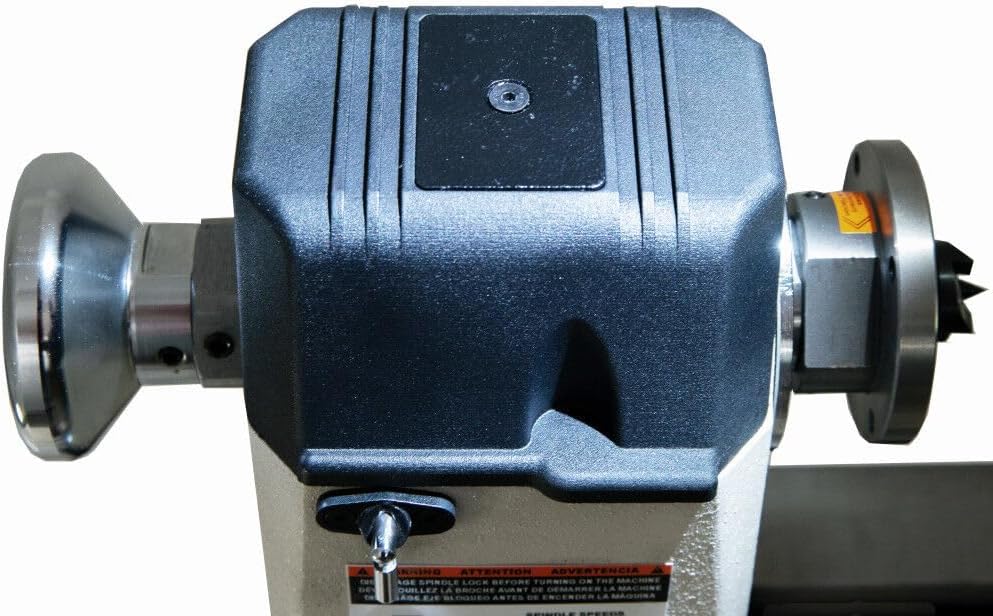

14” X 20” VARIABLE SPEED MIDI LATHE 70-1420VSR is the largest benchtop lathe in the RIKON line of machinery. This upgraded model gives woodturners increased spindle-to-bed height so that larger diameter work can be done. The addition of 3 machined surfaces to mount optional extensions increase the working dimensions even further. Use the headstock’s outboard threaded spindle and optional 13-1/2” Extension (70-903) to add 4” of extra turning diameter capacity. Mount this same extension to the front of the lathe bed, and with the remounted tool rest the outside edges or backs of bowls and platters can be safely turned. Lastly, the right bed end of the lathe is machined to attach the optional 13-1/2” or the longer 24” extension (70-904), for increasing the working distance from 20” to 44” for spindles.
